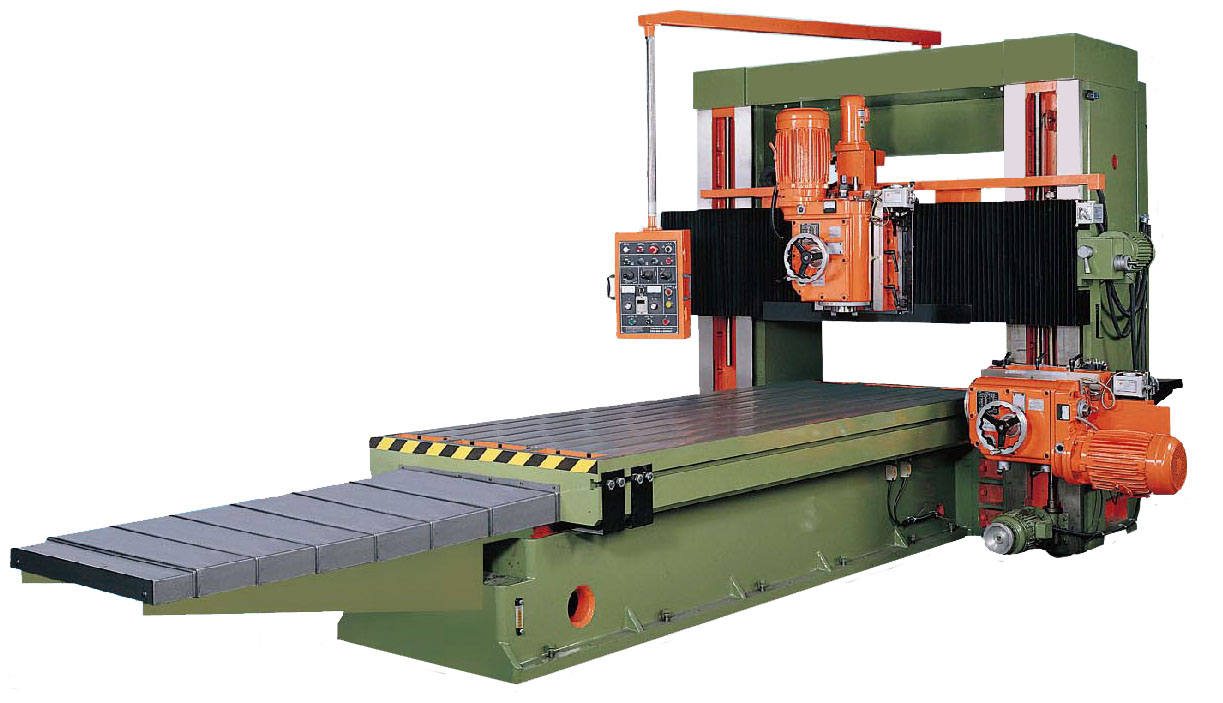

MIDDLE SIZE MULTI SPINDLE MILLING MACHINE AY SERIES



Machine features
  • Extensive surface treatment of the workpieces is provided by an increased crossbeam
  • 3 axis machining design to provide heavy cutting and loading
  • The machine is made of high-quality materials that ensure the reliability of the structure of the machine, and provide high quality and accuracy of processing
  • The crossbeam has an automatic hydraulic lock and safety fence
  • The machine has automatic lubricators for lubricating the lower guides
  • Energy resource at the request of the customer
Machine features
увеличить

High quality control on inspection and assembly

увеличить

Wide range V-shape base has strong structure and especially suitable for heavy loading

увеличить

Digital read out system (option)

увеличить

90-degree head

Angular head is suitable for machining recessed surfaces

увеличить

Universal head

MIDDLE SIZE MULTI SPINDLE MILLING MACHINE CH SERIES
Parameters/Model Unit AY
-2012		 AY
-2512		 AY
-3012		 AY
-4012		 AY
-2015		 AY
-2515		 AY
-3015		 AY
-4015		 AY
-5015		 AY
-6015		 AY
-2518		 AY
-3018		 AY
-4018		 AY
-5018		 AY
-6018
X Axis travel mm 2000 2500 3000 4000 2000 2500 3000 4000 5000 6000 2500 3000 4000 5000 6000
Y Axis travel mm 1200 1500 1800
Z Axis travel (head) mm 300 (10HP) / 400, 600 (15 HP) (option)
Distance between columns mm 1230 1530 1830
Spindle nose to table surface mm 900 1000 / 1200
Table (length) mm 2000 2500 3000 4000 2000 2500 3000 4000 5000 6000 2500 3000 4000 5000 6000
Table (width) mm 800 1200 1400
Spindle power (vertical) HP 10/15 (option)
Spindle power (horizontal) HP 10)/15 (option)
Driving system mm Rapid 5/Cutting 3 (teeth rate 1:15)
Vertical head motor power HP 2
Beam motor power HP 2
Cutting speed mm Variable
kg 11500 13500 15800 18000 14000 16000 18500 20500 23000 26500 18300 20000 22500 25000 29000
Machine length mm 6180 7300 8200 10500 6180 7300 8200 10500 12650 14580 7300 8200 10500 12650 14580
Machine width mm 3000 3300 3680
Machine height mm 2700 2900 2900


Standart systems and accessories
- Machining zone cooling system - Pneumatic tool lock system
- Working light - Micro feeding adjustment
- Guidelines have plating Turcite-B - Automatic lubricators for buttom guidelines
- Automatic hydraulic crossbeam lock - Safety crossbeam cover
- Tool box - Manual operation
Additional options
- Custom made cutting and auxiliary tools - Different spindle (15 HP)
- Workpiece for machining test - Digital display device Fagor
- Machining heads - Other accessories based on customer requirements
